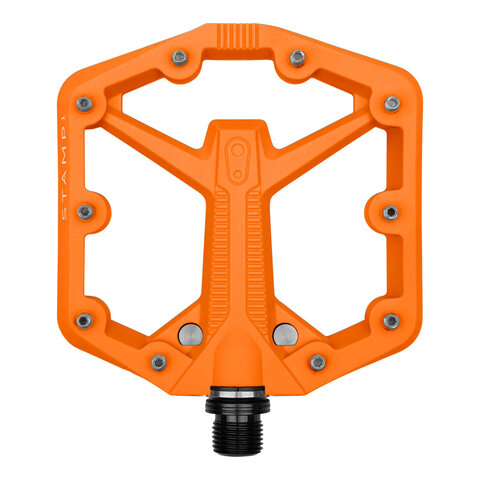

Crank Brothers - Stamp 1 (GEN 2) - Pedals - Platform - Composite - 9/16" - Orange - Small
Crank Brothers - Stamp 1 (GEN 2) - Pedals - Platform - Composite - 9/16" - Orange - Small
Redefined To Rip
The new Stamp 1 Gen 2 builds upon the Stamp legacy with a true concave body design for enhanced on-trail confidence, trusted Igus internal components for durability, and a new one-piece pin design for maximum grip and easy pin replacement.
Crafted with an uncompromising commitment to quality, our updated Stamp 1 pedal boasts a robust nylon composite body and inherits the tried-and-true internals from our award-winning Stamp 7 flat pedals, keeping you supported lap after lap.
Features:
- Optimal size-specific surface area
- Thin, concave profile - 13.5mm to 15.5mm pedal body height
- New one-piece replaceable traction pins, 10 per pedal
- Upgraded, fully serviceable IGUS bearings & seal system
- Stamp Small recommended for shoe sizes: 3-10 (US M) // 37-43.5 (EU)
FOOTPRINT
100mm x 100mm
SHOE SIZE
US 3-10 // EU 35-43.5
WARRANTY
5 years
WEIGHT
321g per pair
INNER BEARING TYPE
Igus LL-glide bearing
OUTER BEARING TYPE
Igus LL-glide bearing
TRACTION PINS
10 replaceable per pedal
PIN LENGTH
23mm inner, 25mm inner
SPINDLE MATERIAL
Forged SCM 435 Chromoly Steel
BODY MATERIAL
Composite
